YINGANG SUV500II

A long-distance sidecar with a 20L tank and 34 kW of power.

Sidecar & Cargo

SUV500II

  • 452cc inline-twin water-cooled EFI engine, 34 kW
  • 5-speed gearbox plus reverse
  • Disc brakes on all three wheels

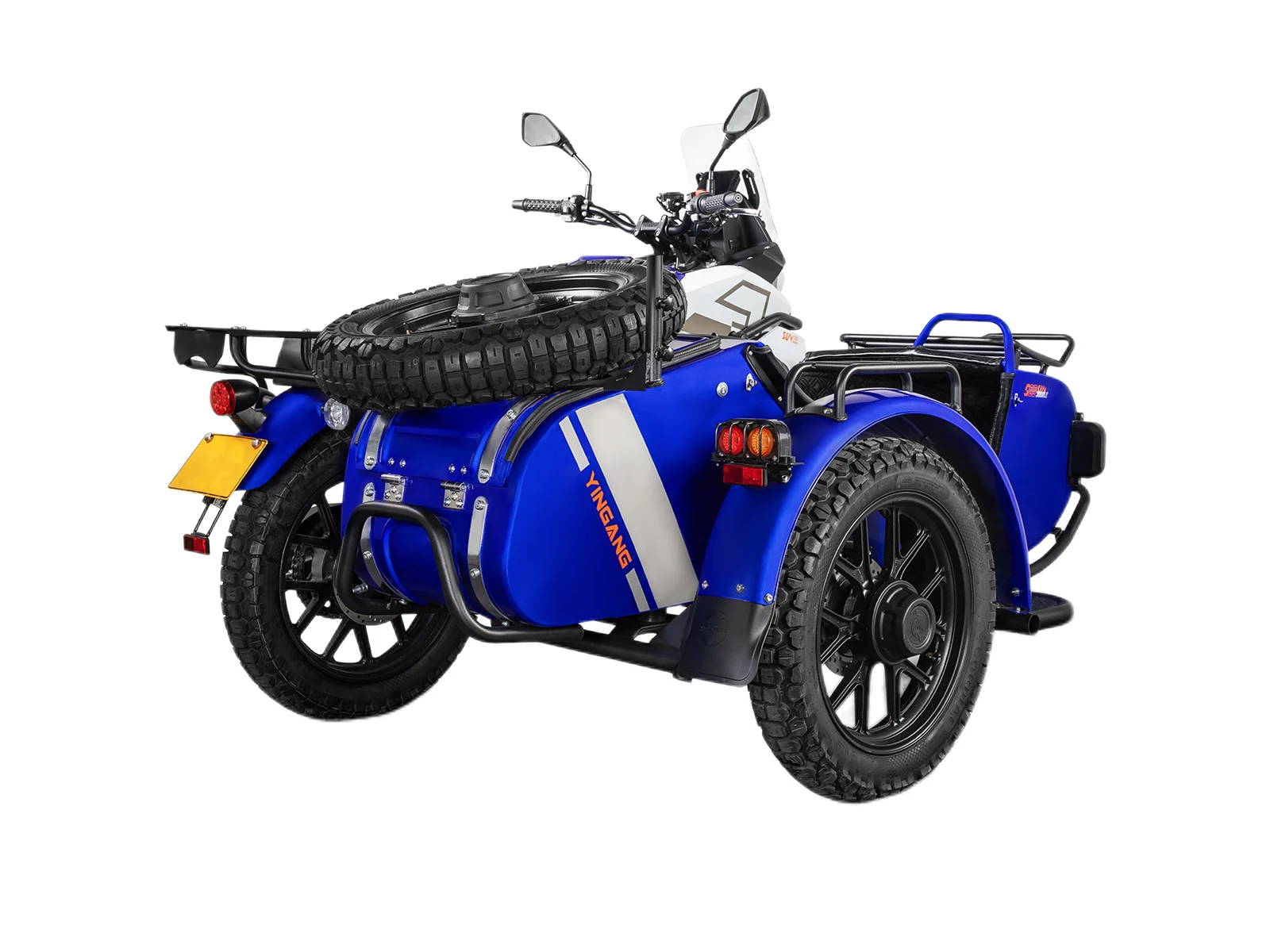

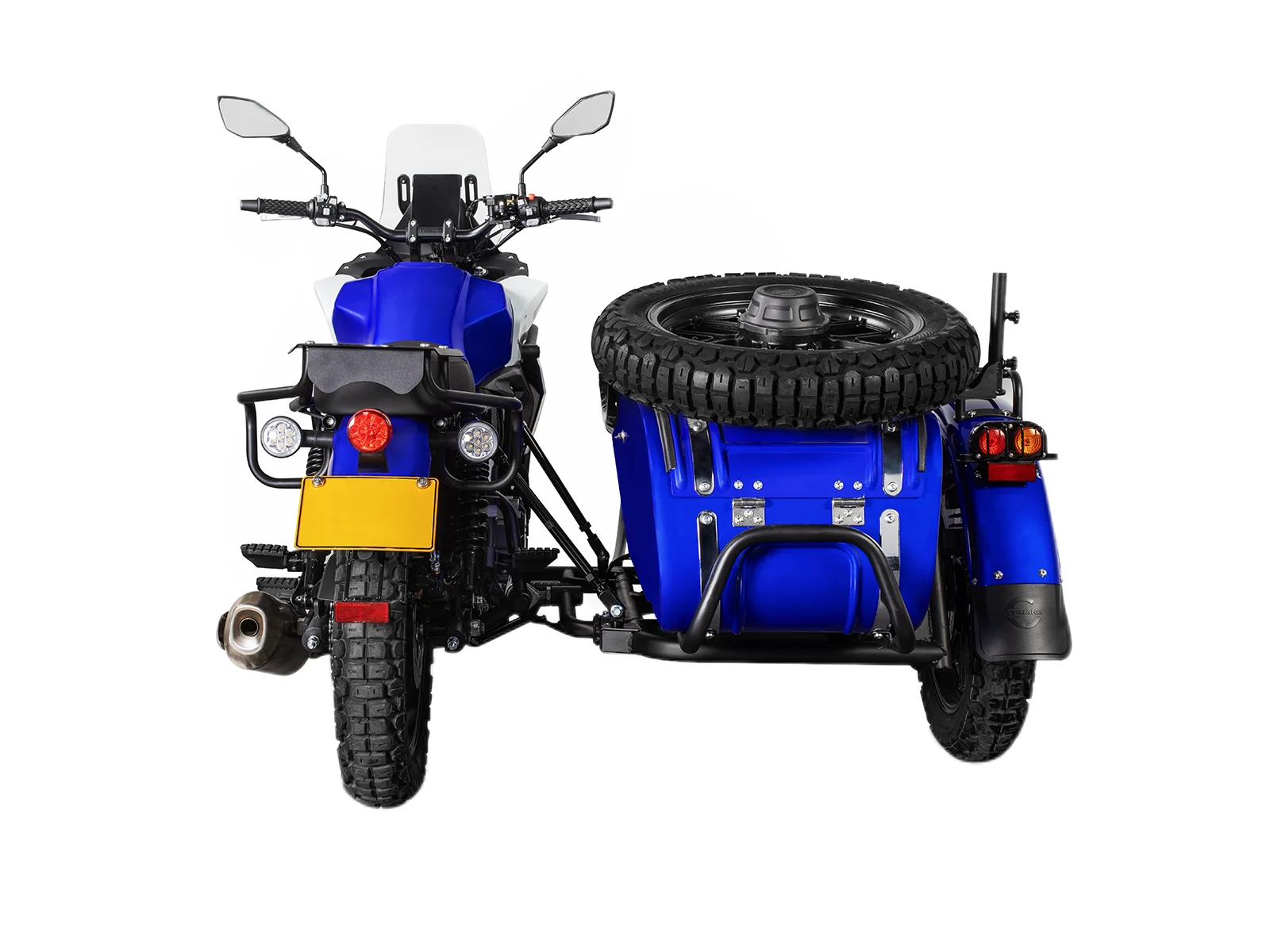

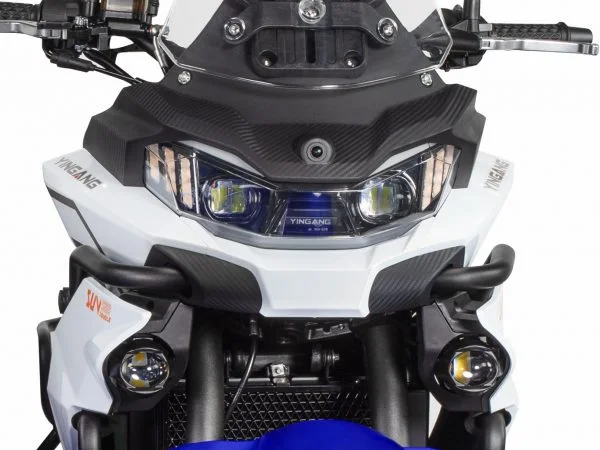

  • Spare wheel, luggage racks and LED auxiliary lights
  • OEM/ODM customization with CKD / SKD / CBU supply

⚡ We reply to every inquiry within 12 hours on working days.

Model Description

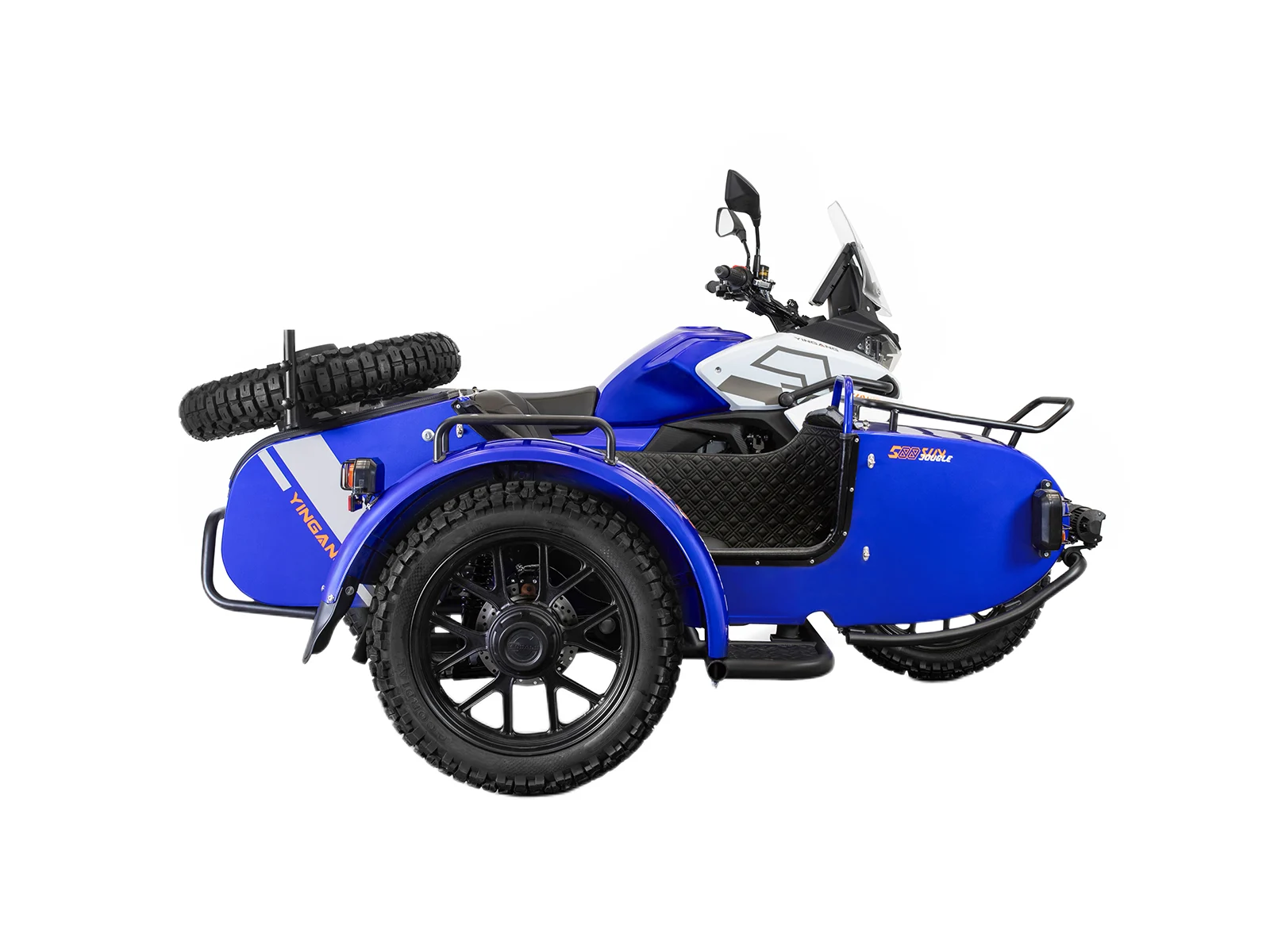

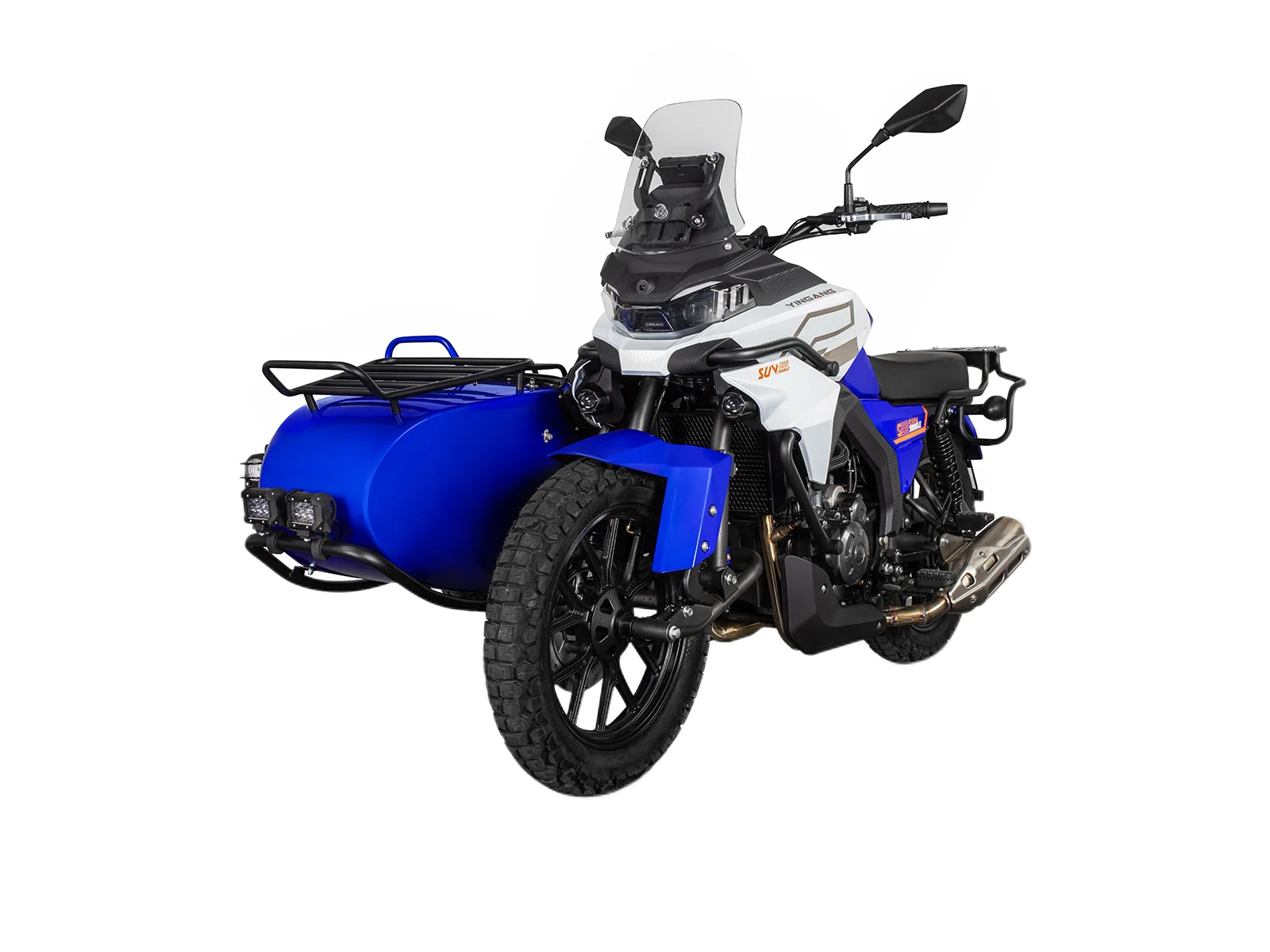

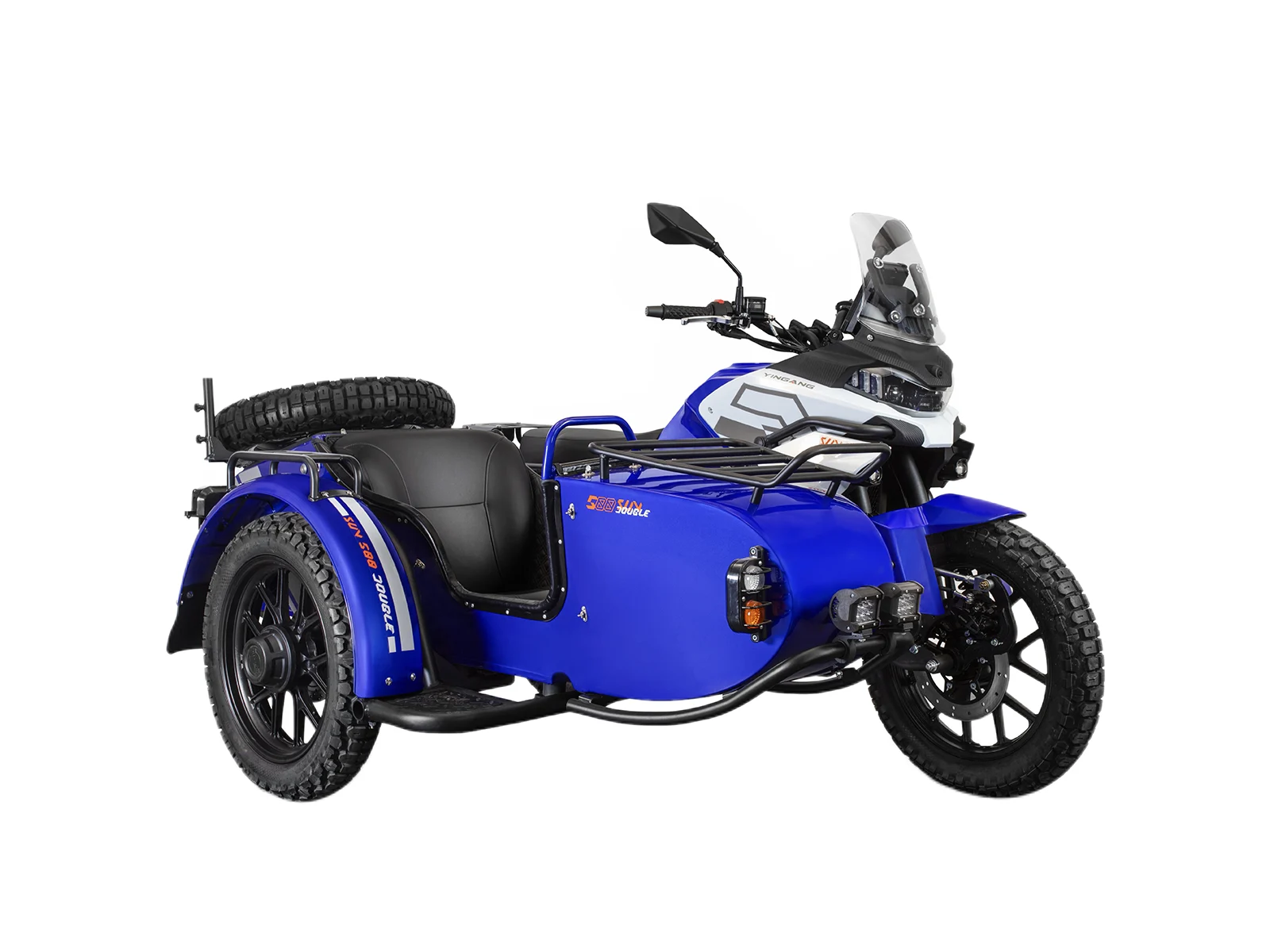

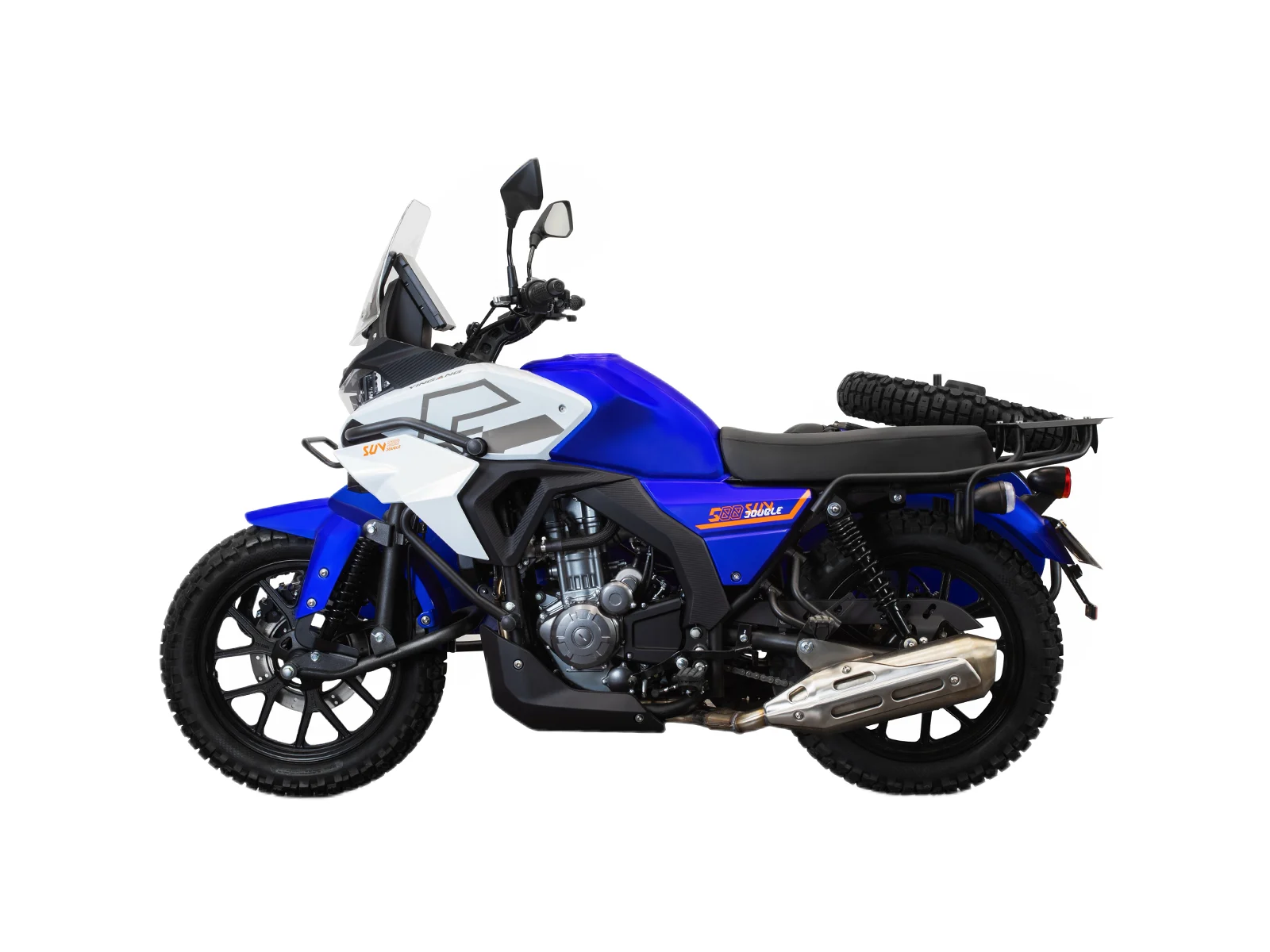

The YINGANG SUV500II is an adventure-styled sidecar motorcycle built for long-distance touring. A 452cc inline-twin, water-cooled, fuel-injected engine delivers 34 kW at 8,500 rpm and 41 N·m of torque, and the 20-liter tank keeps fuel stops few and far between.

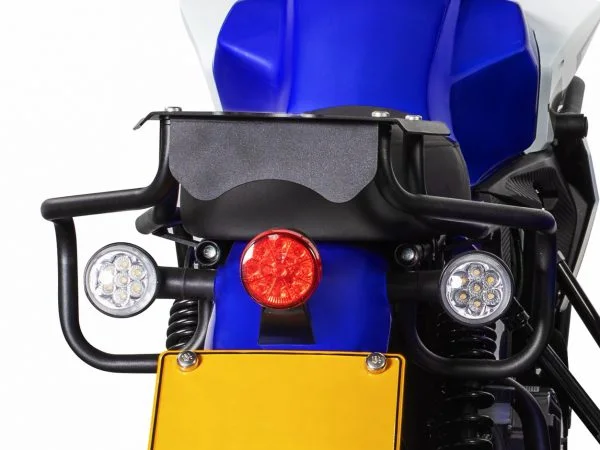

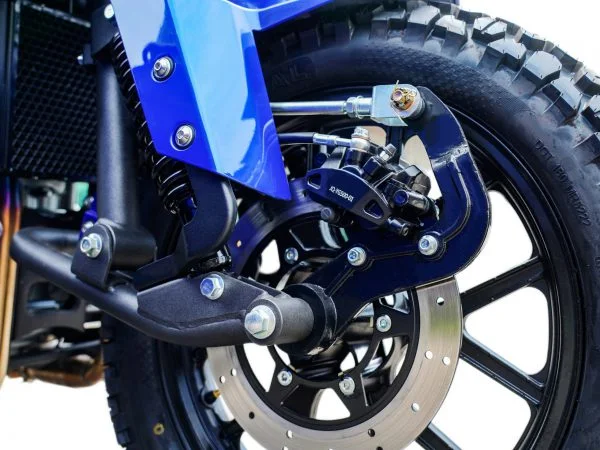

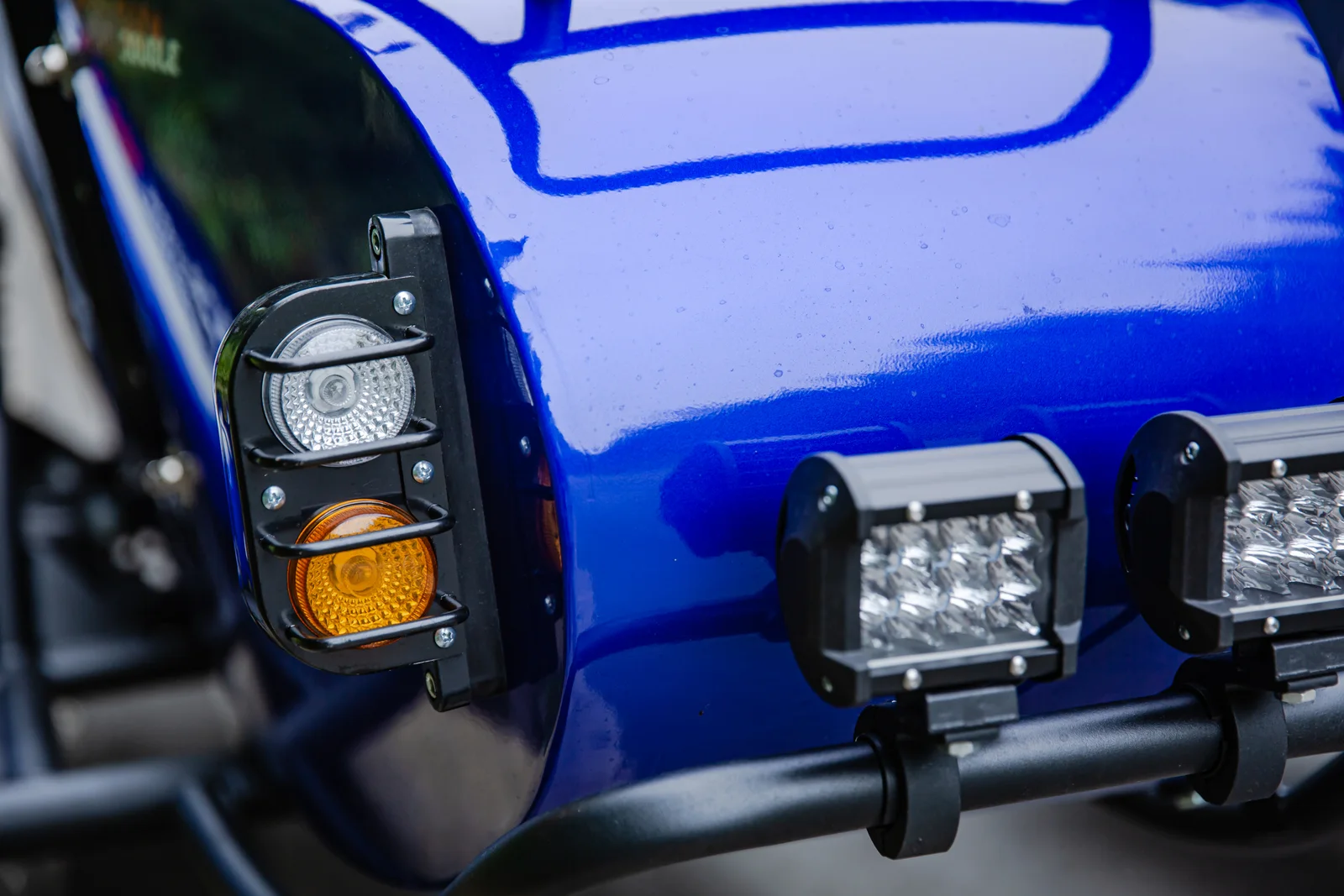

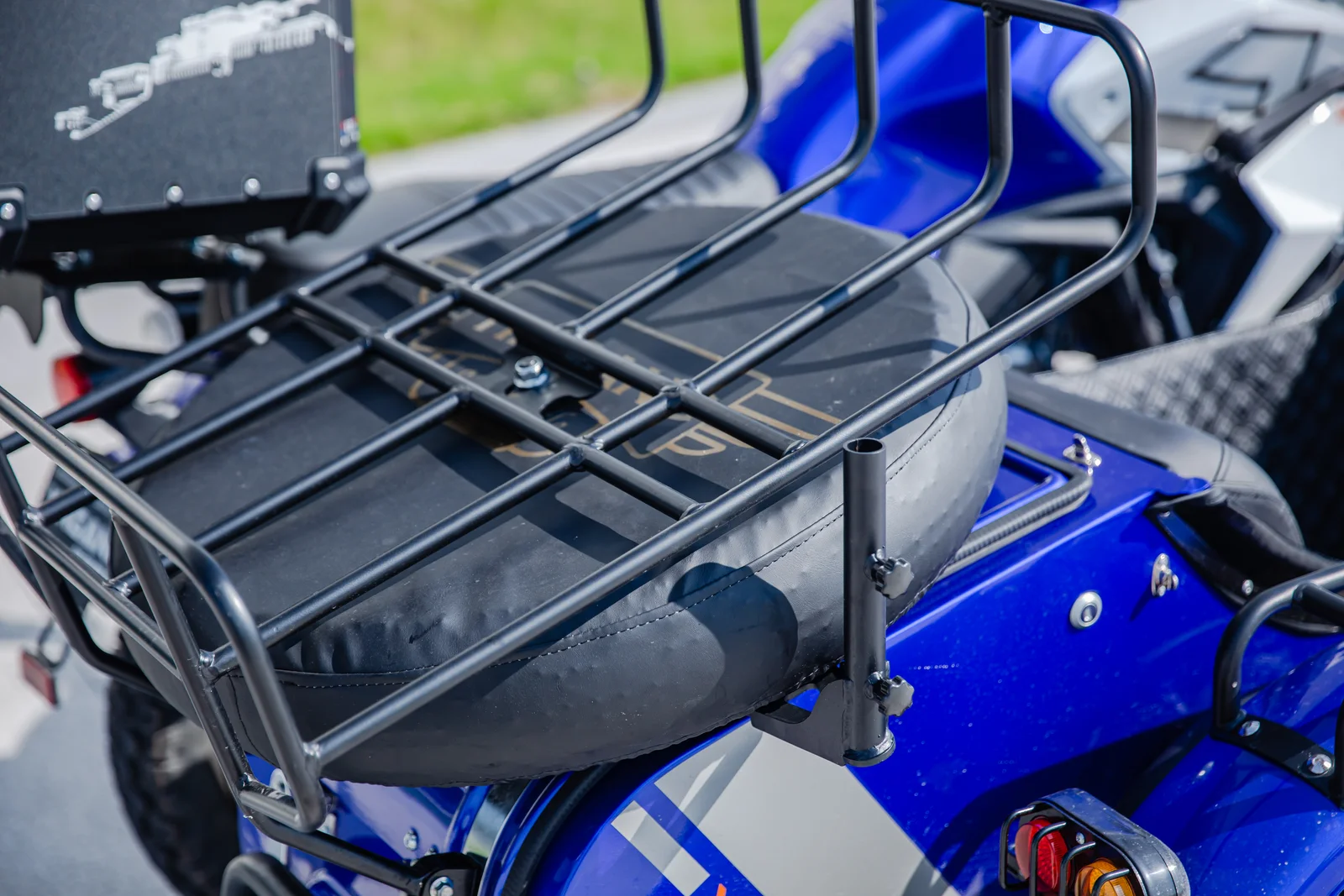

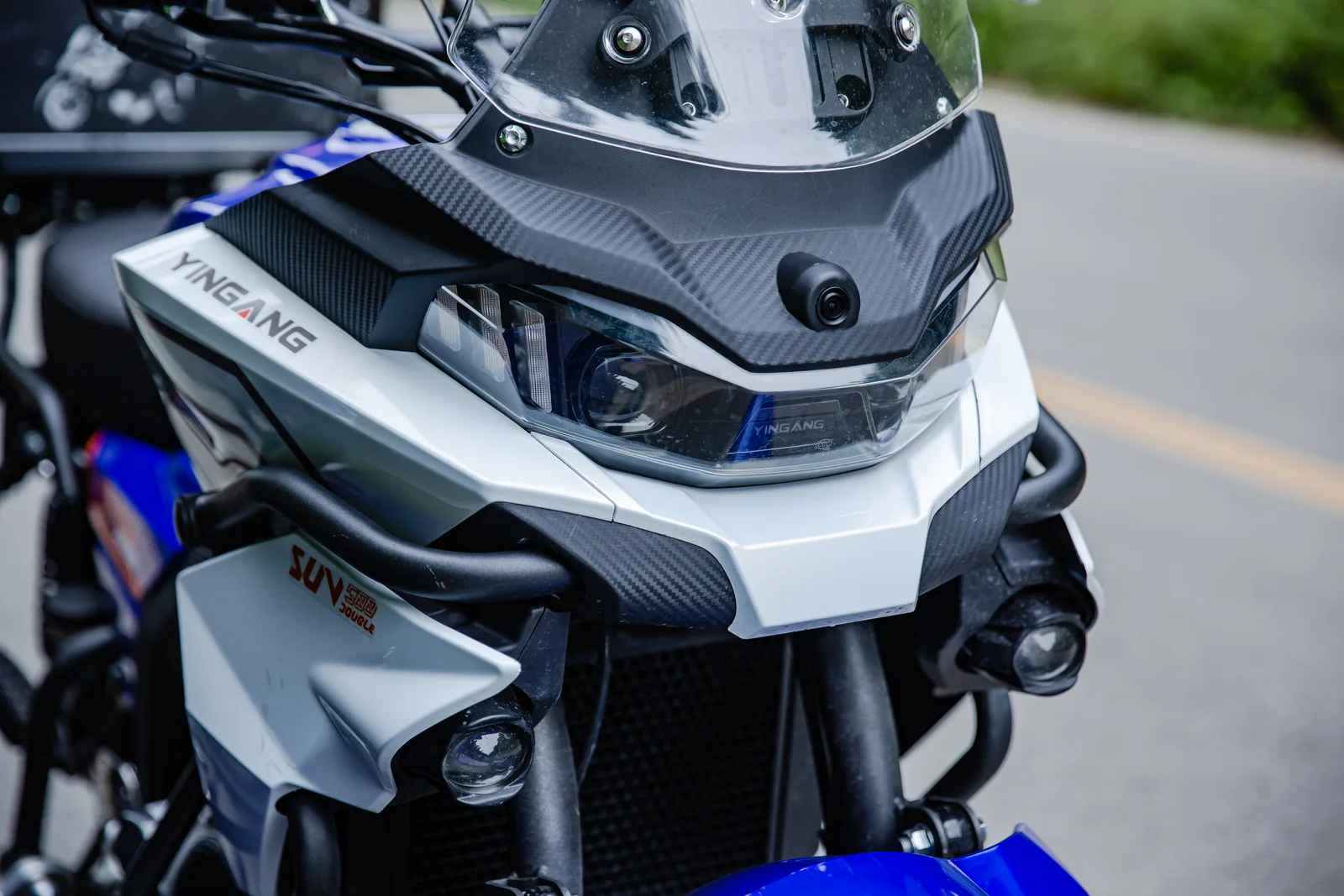

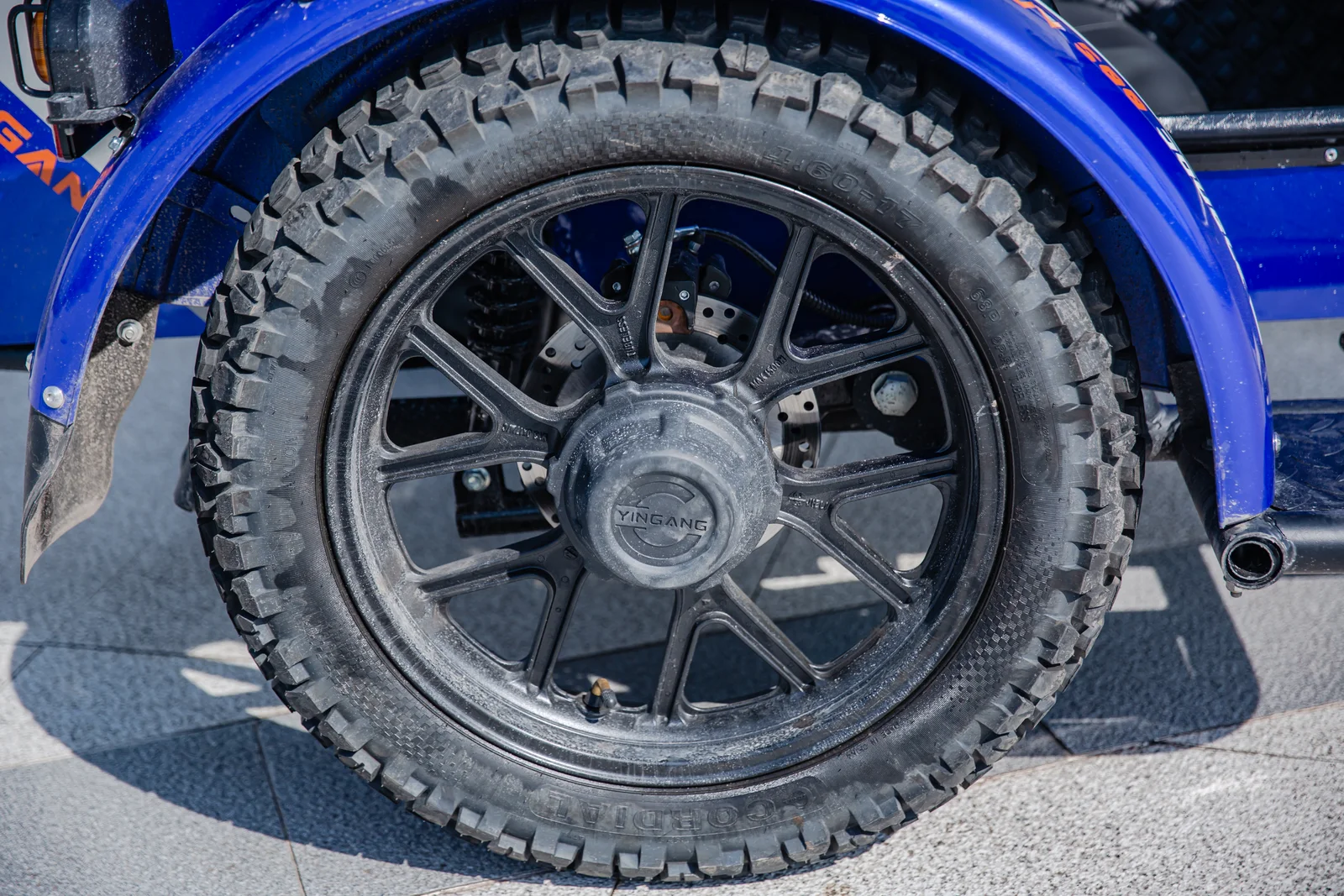

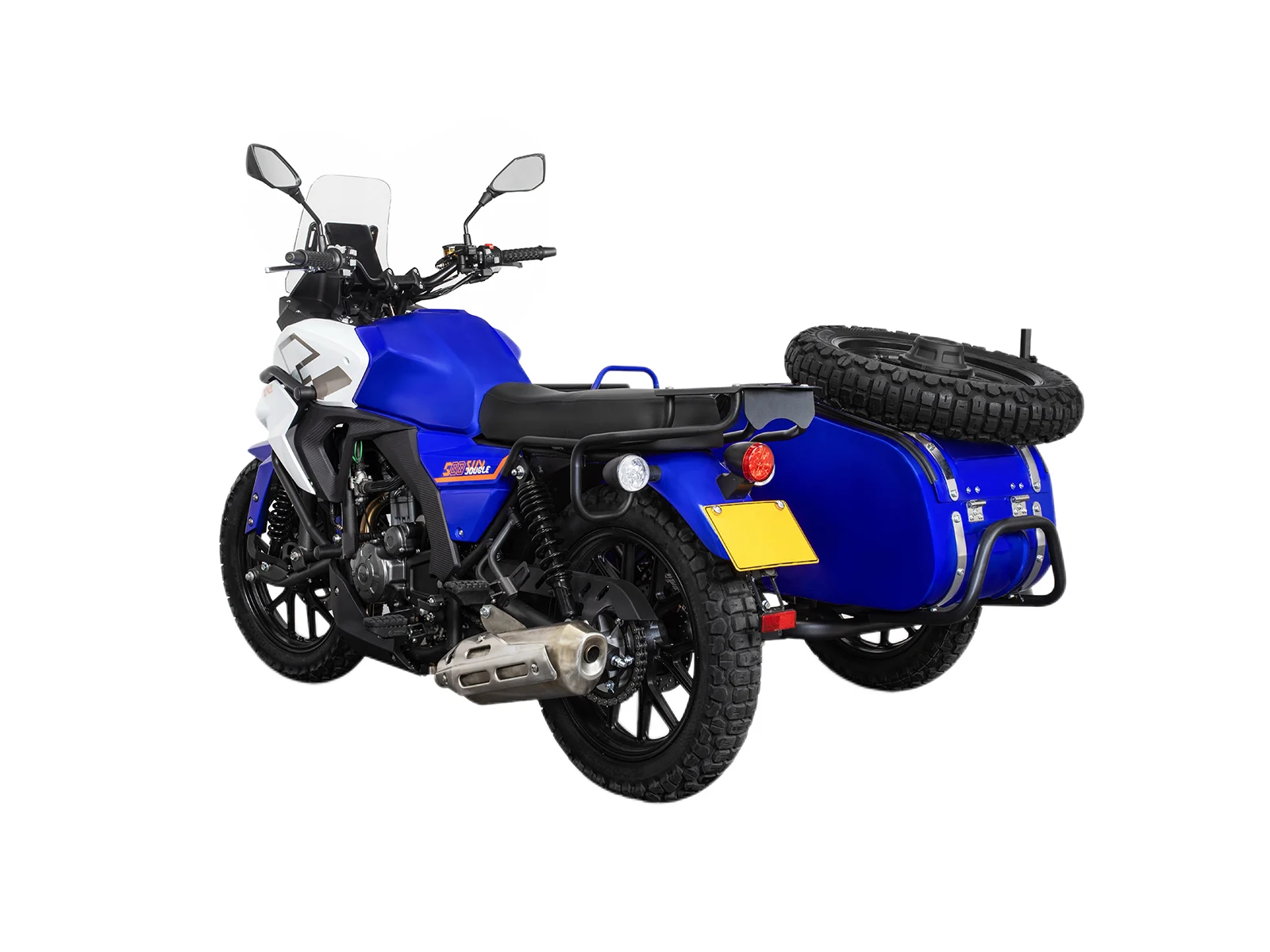

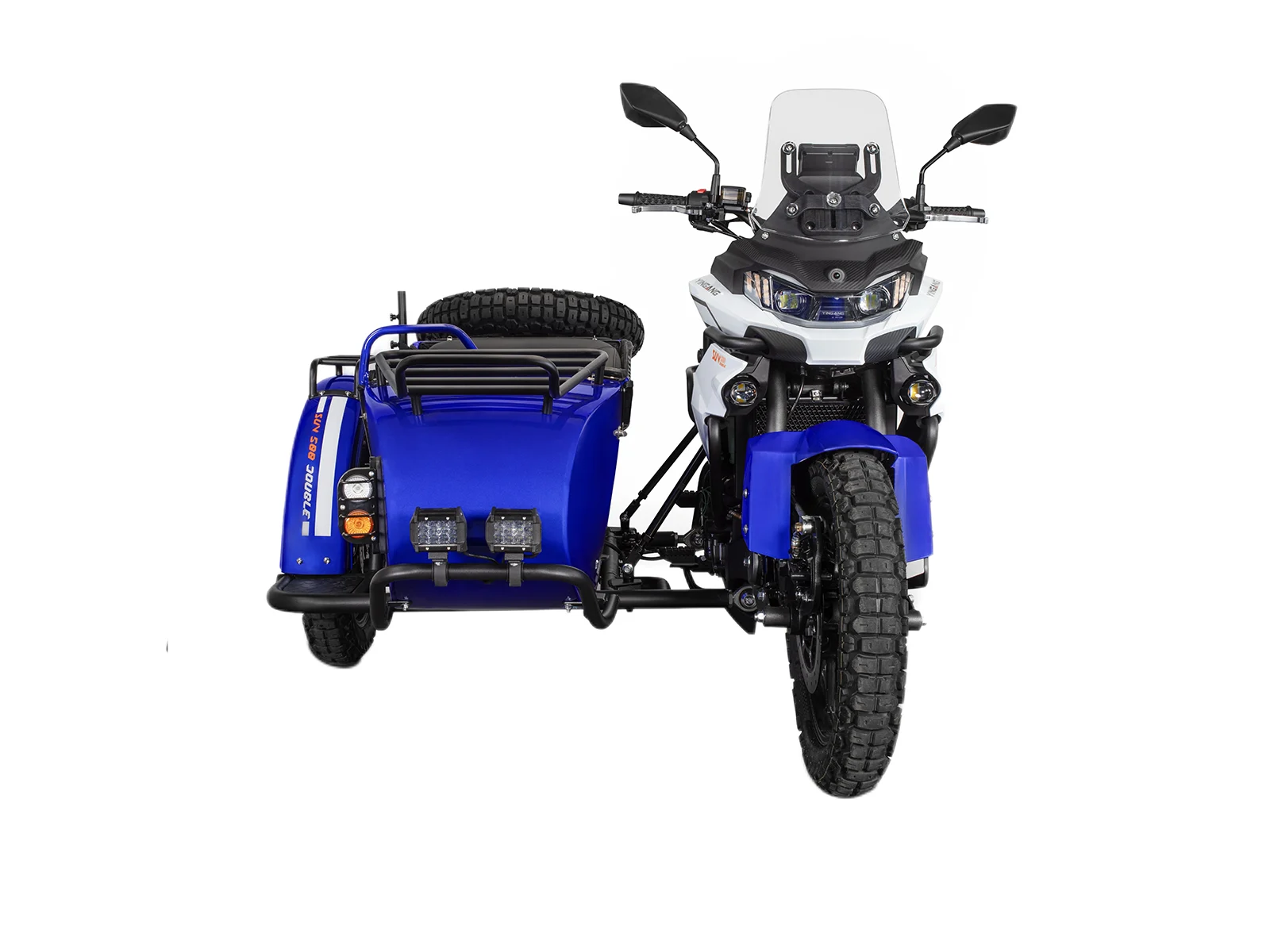

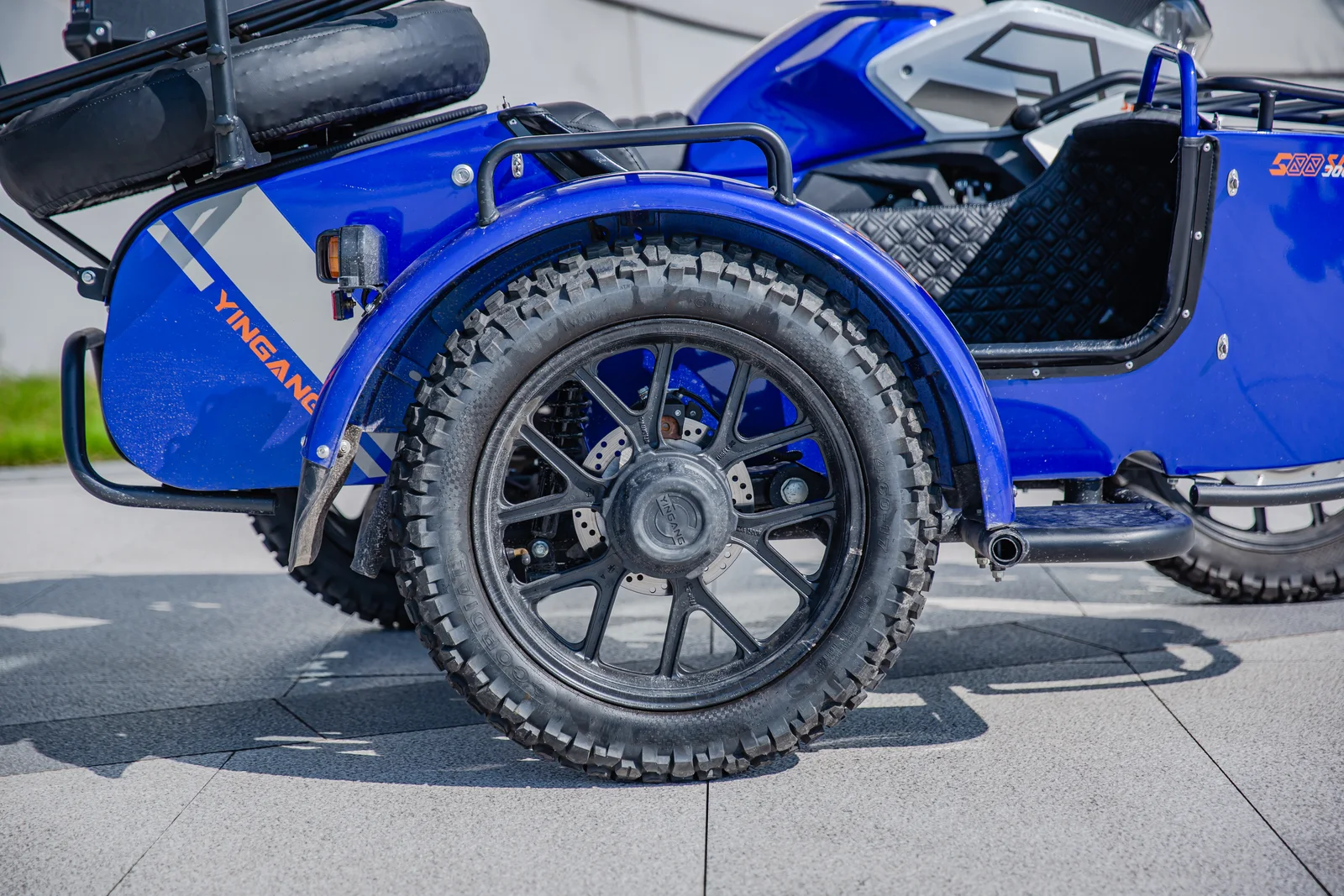

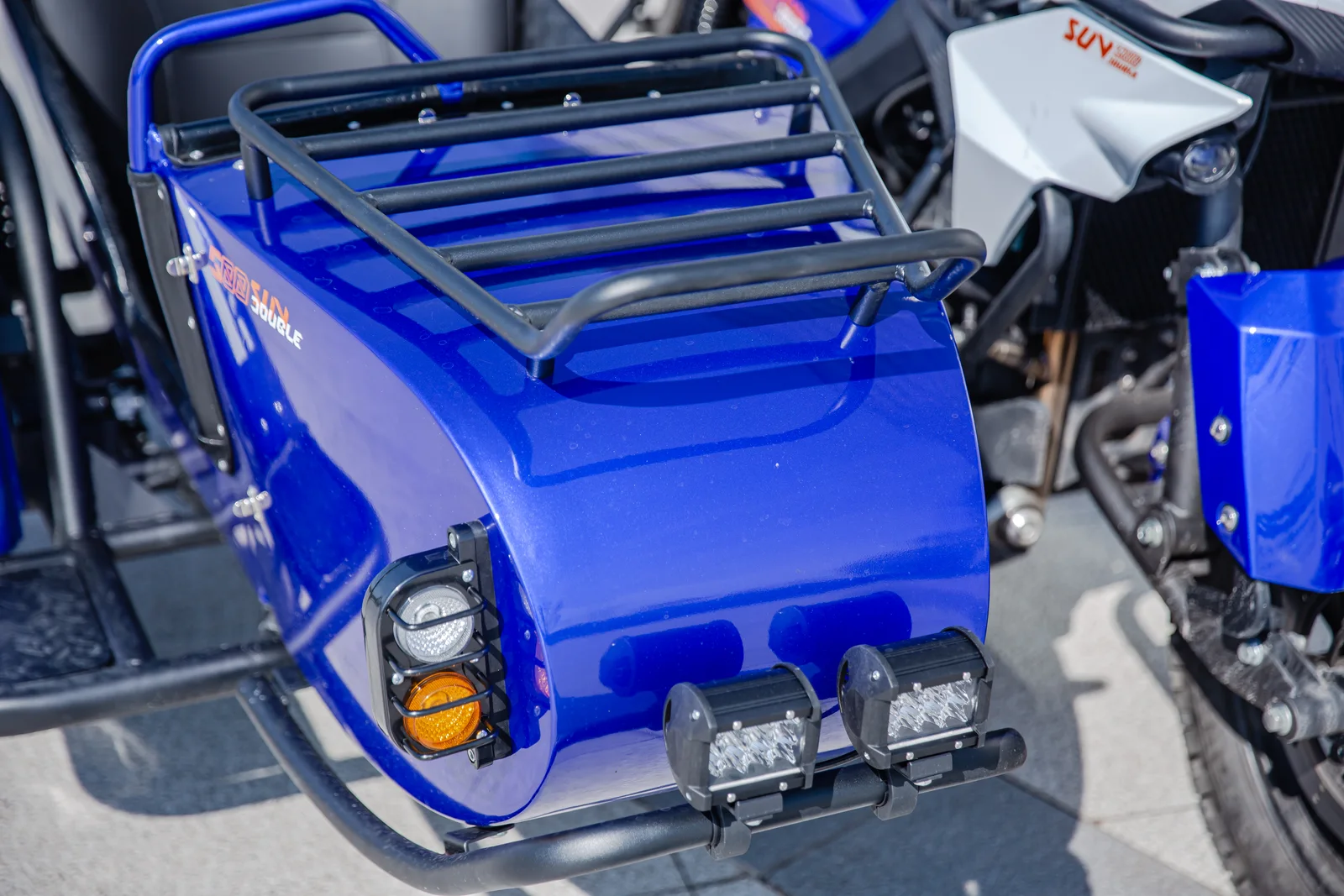

The SUV500II rides on a 1,370 mm wheelbase with 160 mm of ground clearance and 4.6-17 tires front and rear, with disc brakes on all three wheels and a five-speed gearbox with reverse. A rear luggage rack and LED auxiliary lights are fitted on the version shown.

For importers and distributors, the SUV500II can be configured for your market — colors, equipment, lighting and certification requirements — and supplied as CBU (14 units per 40HQ), SKD or CKD. Download the spec sheet below or request a quote for your target market.

Technical Specifications

ENGINE TYPE452 cc; INLINE TWIN, WATER-COOLED, 4-STROKE
MAX POWER34 kW @ 8,500 rpm
MAX TORQUE41 N·m @ 6,000 rpm
FUEL SYSTEMEFI
START SYSTEMELECTRIC/KICK
TRANSMISSION5 GEARS + 1 REVERSE
DIMENSION2,180 × 1,630 × 1,340 mm
WHEELBASE1,370 mm
SEAT HEIGHT798 mm
GROUND CLEARANCE160 mm
DRY WEIGHT334 kg
MAX SPEED115 km/h
TIREFR/RR: 4.6-17
BRAKEFR/RR/SIDECAR: DISC
FUEL TANK20 L
OPTIONSN/A
LOADING14 units / 40HQ (CBU)

Specifications vary by market version and customization. Contact us for the full spec sheet of the SUV500II for your target market.
