YINGANG T5
Scooters — available for OEM/ODM customization and CKD/SKD/CBU supply.
Scooters
T5
- OEM/ODM customization available
- CKD / SKD / CBU supply options
- Export documentation support
⚡ We reply to every inquiry within 12 hours on working days.
Model Description

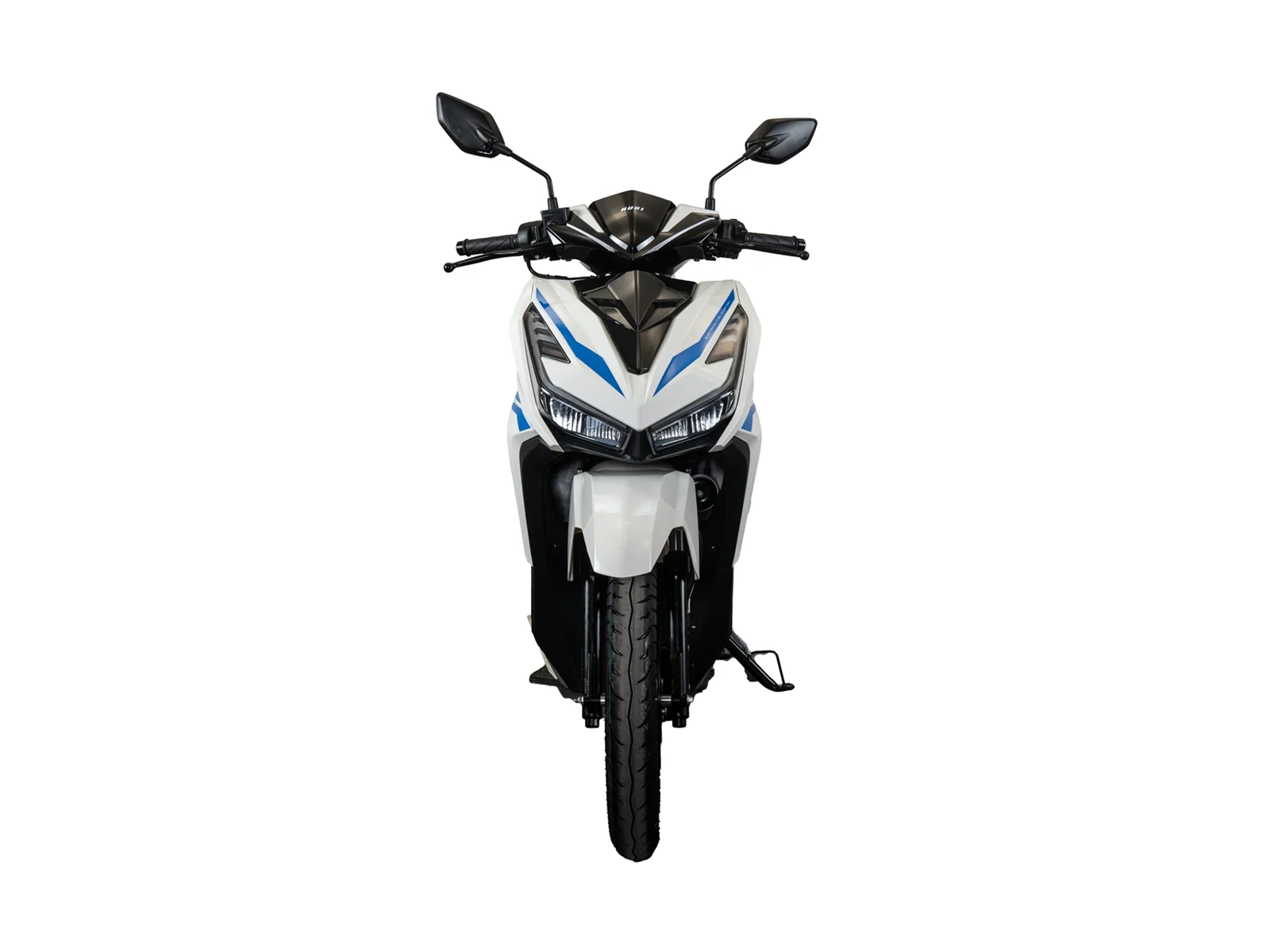

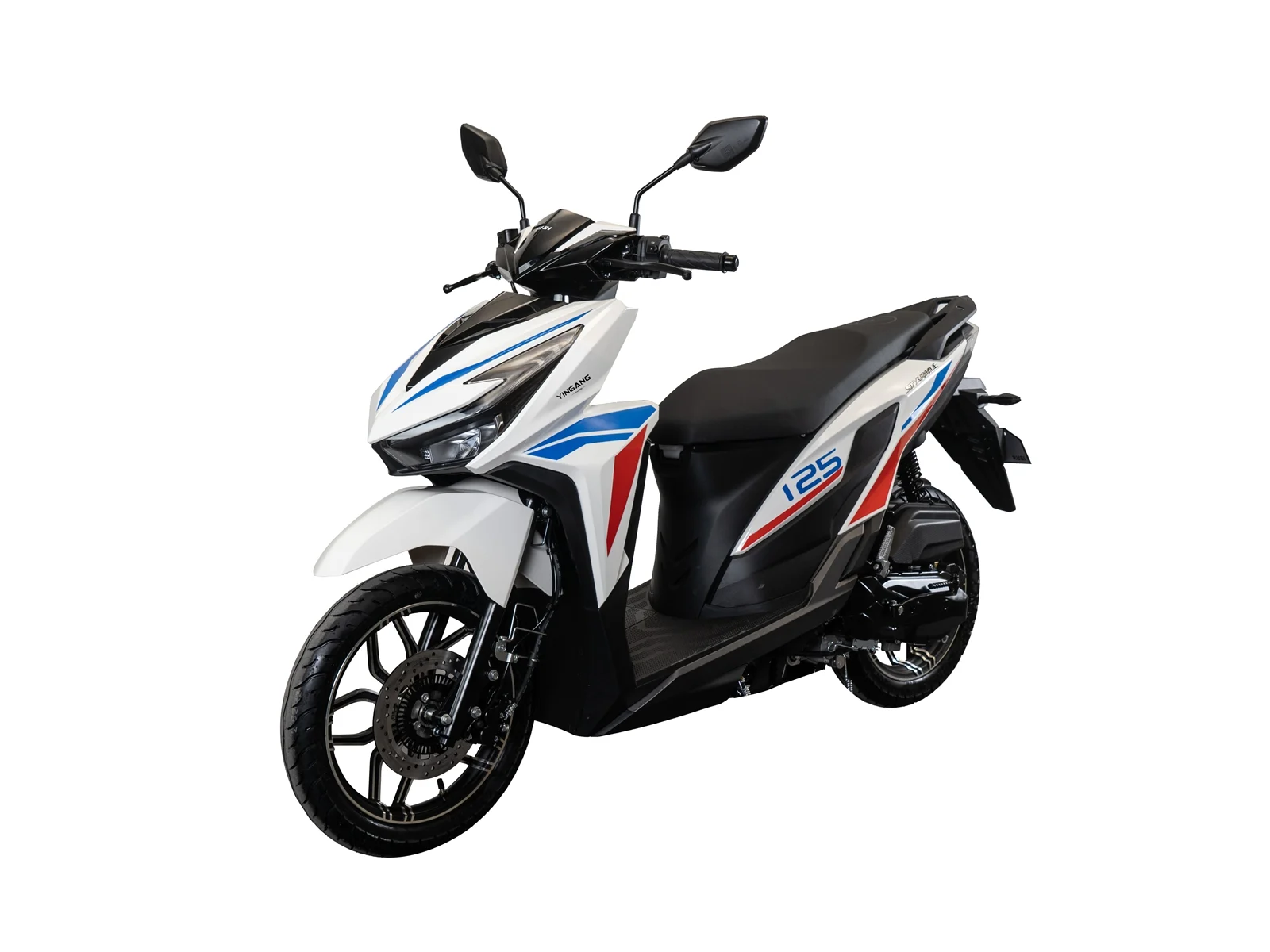

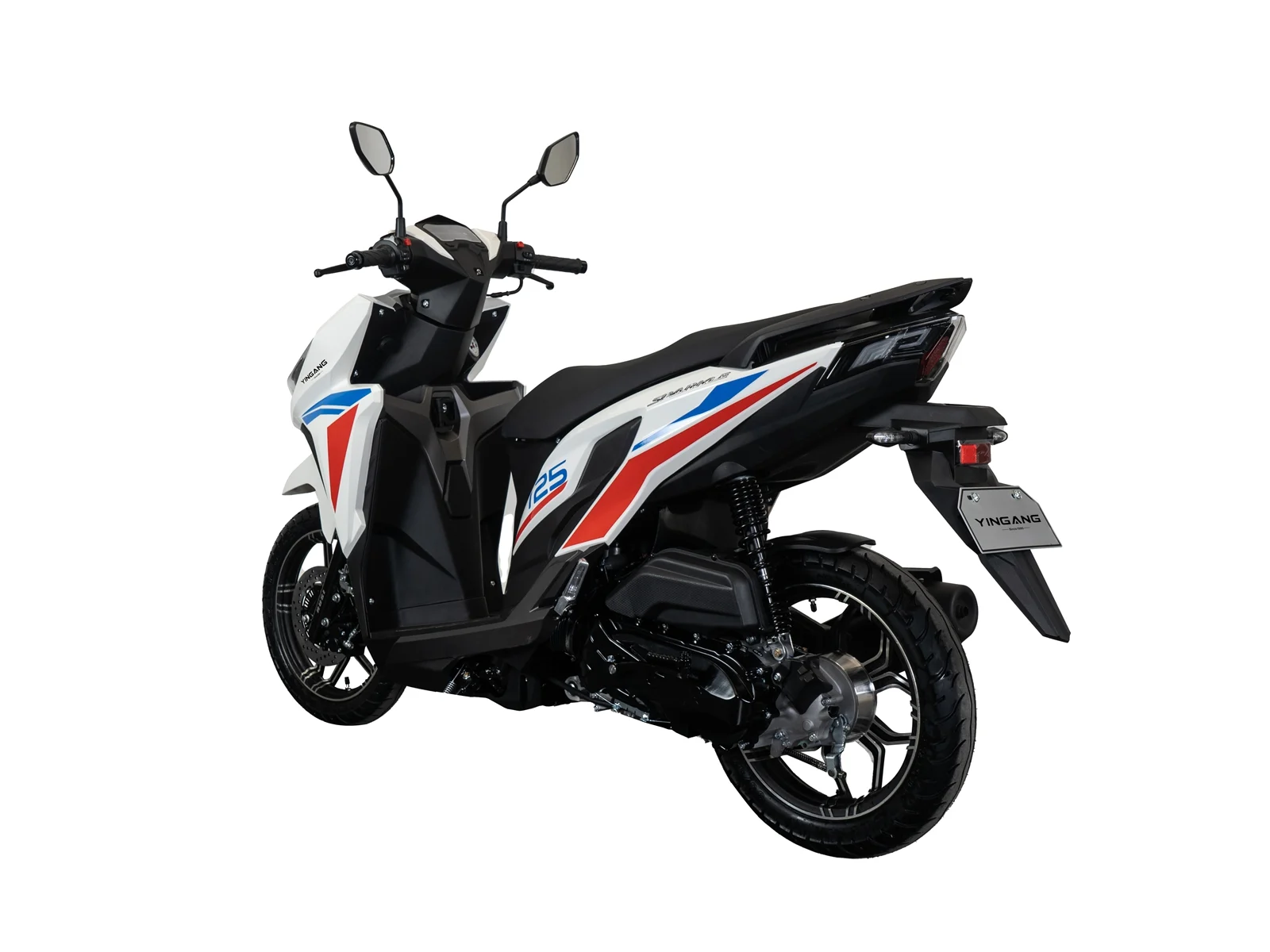

The T5 is a city scooter designed for urban commuting and delivery fleets. Easy handling, generous storage and economical running costs make it a strong seller in dense urban markets.
Like every YINGANG model, the T5 can be customized for your market — colors, decals, specs, packaging and certification requirements. CKD, SKD and CBU supply options are available.
Technical Specifications
ENGINE TYPE
150CC(KS150C); WATER-COOLED, SOHC
MAX POWER
10.25KW/8250RPM
MAX TORQUE
14N.M/6500RPM
FUEL SYSTEM
EFI
START SYSTEM
ELECTRIC/KICK
TRANSMISSION
CVT
DIMENSION
1940*680*1075MM
WHEELBASE
1285MM
SEAT HEIGHT
780MM
GROUND CLEARANCE
130MM
DRY WEIGHT
107KG
MAX SPEED
100KM/H
TIRE
FR1/RR1: 90/80-14 / 100/80-14
FR2/RR2: 80/90-14 / 90/90-14
SUSPENSION
FR/RR: TELESCOPIC/MONO SHOCK

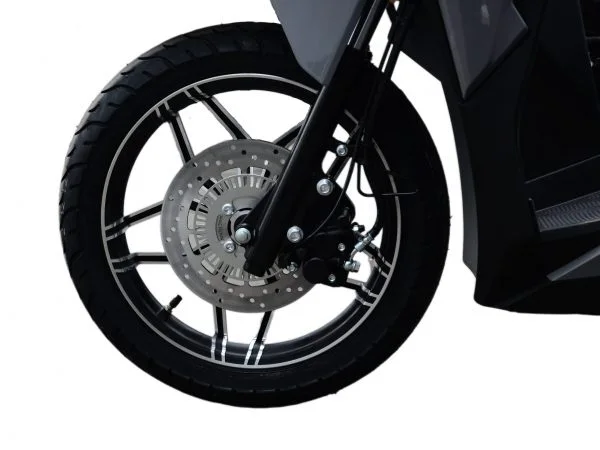

BRAKE
FR/RR: DISC/DRUM
FUEL TANK
5.4L
OPTIONS
125CC AIR COOLED/CARBURETOR
LOADING
75 UNITS/40HQ IN CBU
115 UNITS/40HQ IN CKD
Specifications vary by market version and customization. Contact us for the full spec sheet of the T5 for your target market.
