YINGANG CUB-2

CUB & Underbone — available for OEM/ODM customization and CKD/SKD/CBU supply.

CUB & Underbone

CUB-2

  • OEM/ODM customization available
  • CKD / SKD / CBU supply options
  • Export documentation support

⚡ We reply to every inquiry within 12 hours on working days.

Model Description

The CUB-2 is a fuel-efficient underbone (CUB) motorcycle designed for daily commuting and commercial use. Low fuel consumption, simple maintenance and durable components make it one of the most cost-effective two-wheelers for high-volume markets.

Like every YINGANG model, the CUB-2 can be customized for your market — colors, decals, engine specs, packaging and certification requirements. CKD, SKD and CBU supply options are available.

Technical Specifications

ENGINE TYPE110 cc; AIR-COOLED, 4-STROKE, DOHC
MAX POWER5.5 kW @ 7,000 rpm
MAX TORQUE8.5 N·m @ 5,000 rpm
FUEL SYSTEMCARBURETOR
START SYSTEMELECTRIC/KICK
TRANSMISSION4 GEARS
DIMENSION1,920 × 730 × 1,090 mm
WHEELBASE1,240 mm
SEAT HEIGHT785 mm
GROUND CLEARANCE150 mm
DRY WEIGHT100 kg
MAX SPEED90 km/h
TIREFR/RR: 2.50-17 / 2.75-17

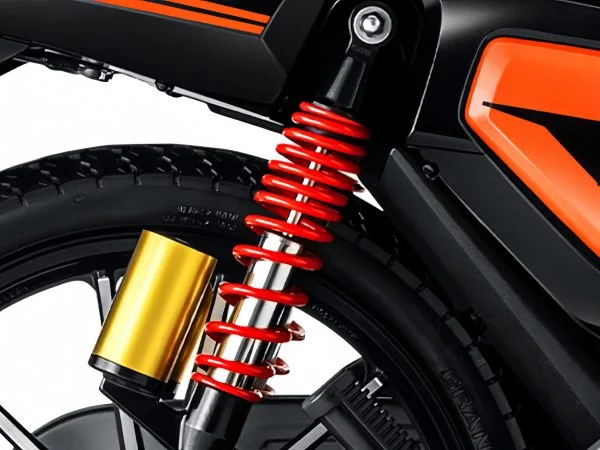

SUSPENSIONFR/RR: TELESCOPIC/COIL SPRING

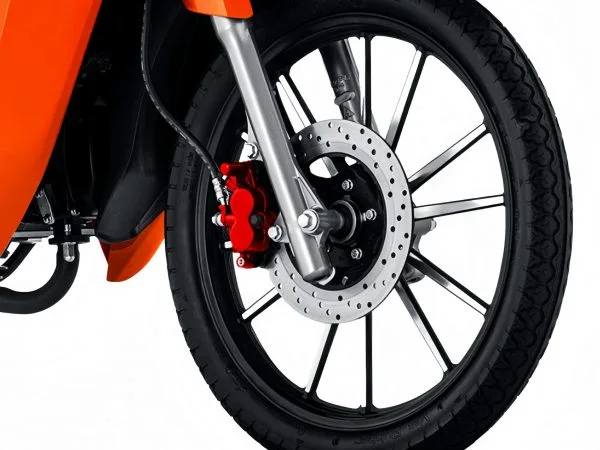

BRAKEFR/RR: DISK/DRUM
FUEL TANK4.1 L
OPTIONS50~130 cc ENGINE/CBS/EFI
LOADING105 units / 40HQ (CBU)

Specifications vary by market version and customization. Contact us for the full spec sheet of the CUB-2 for your target market.

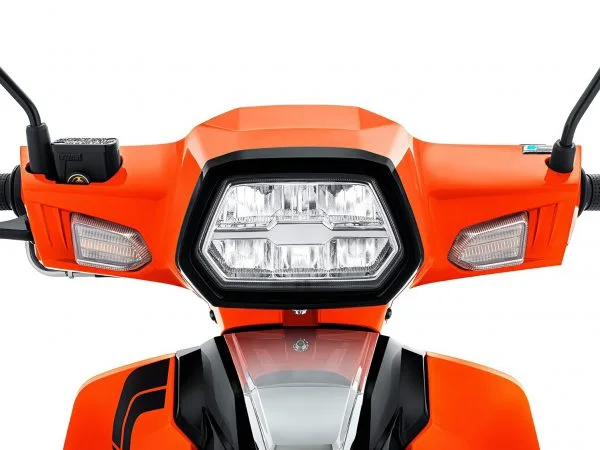

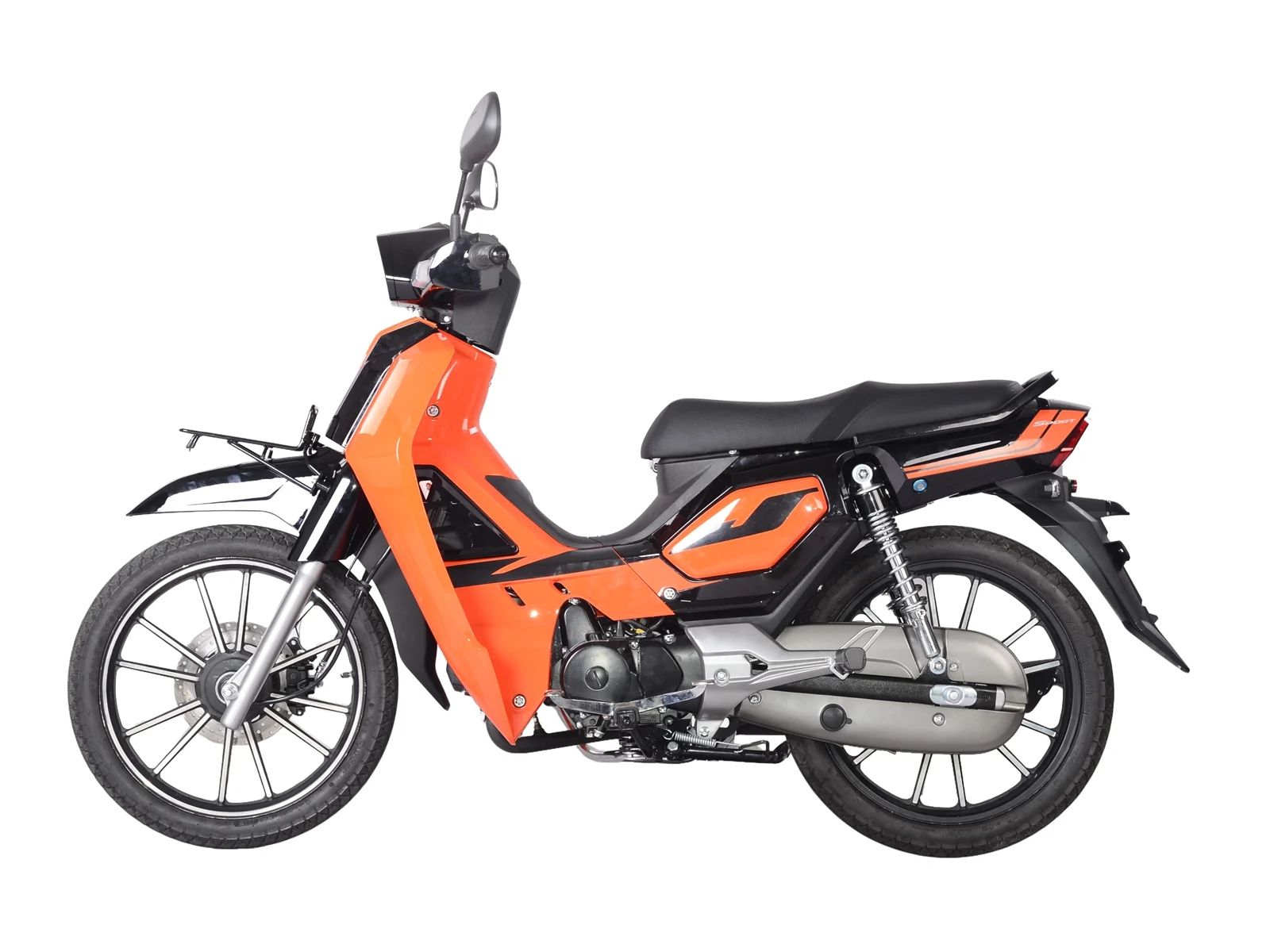

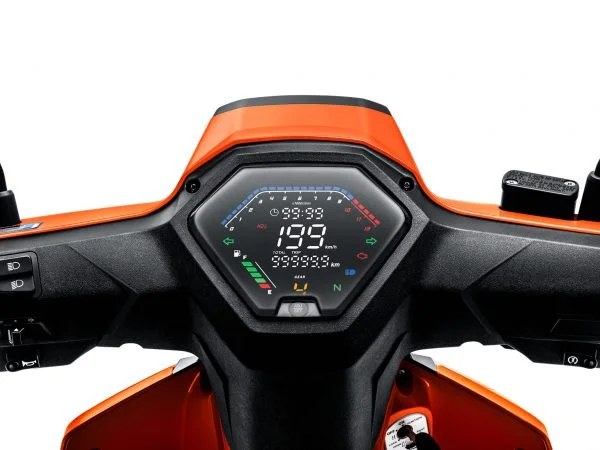

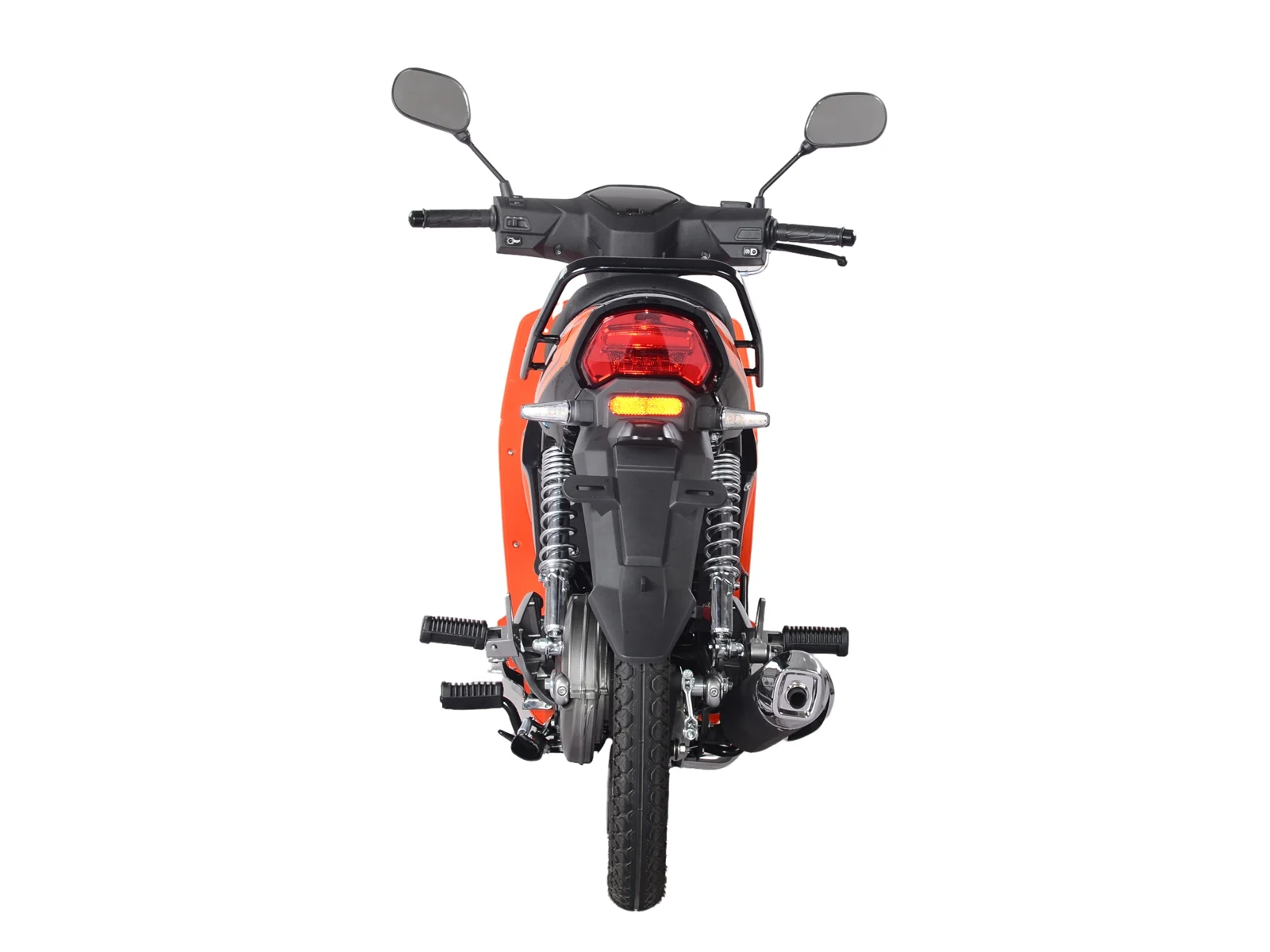

Product Details
