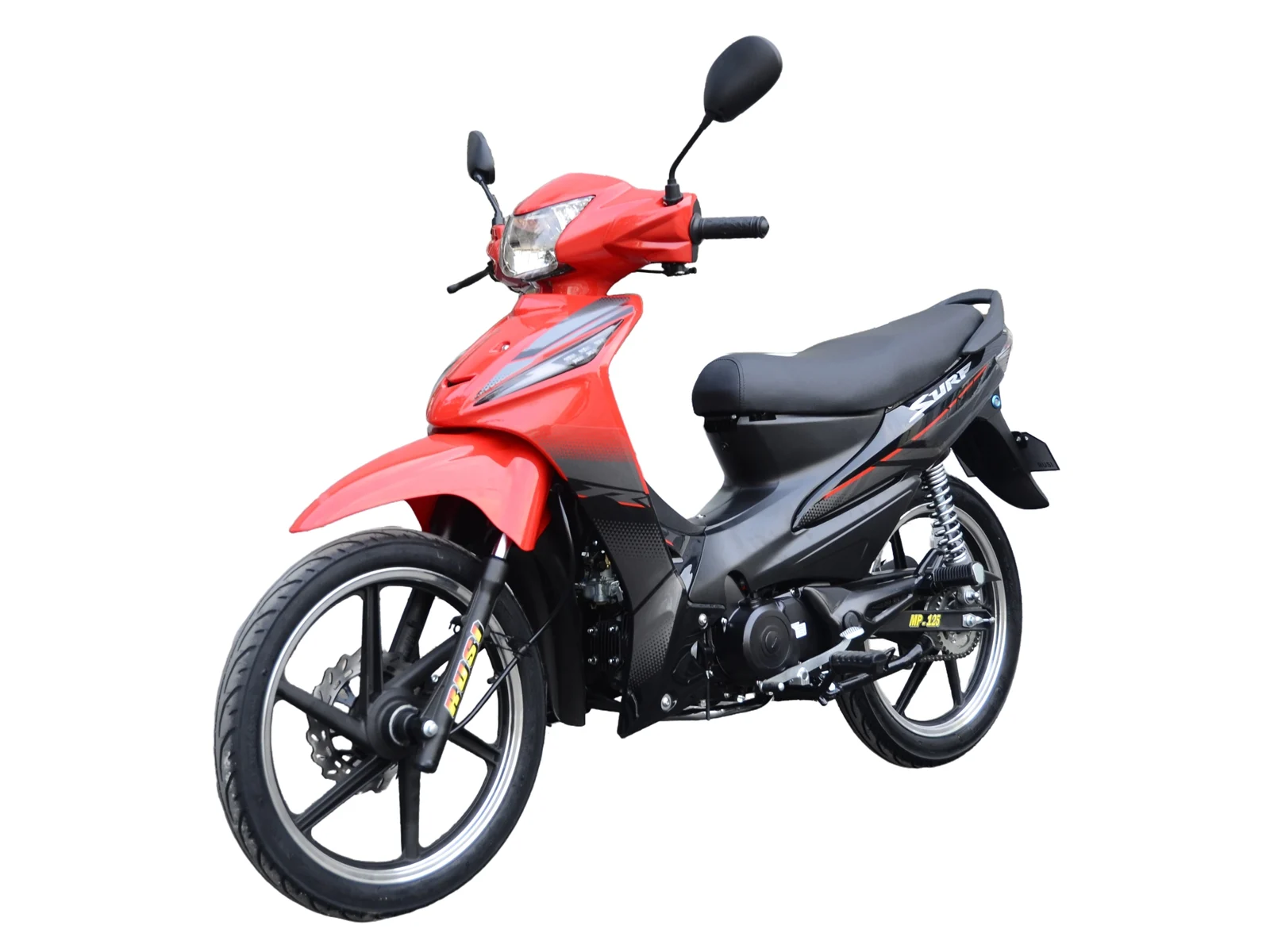

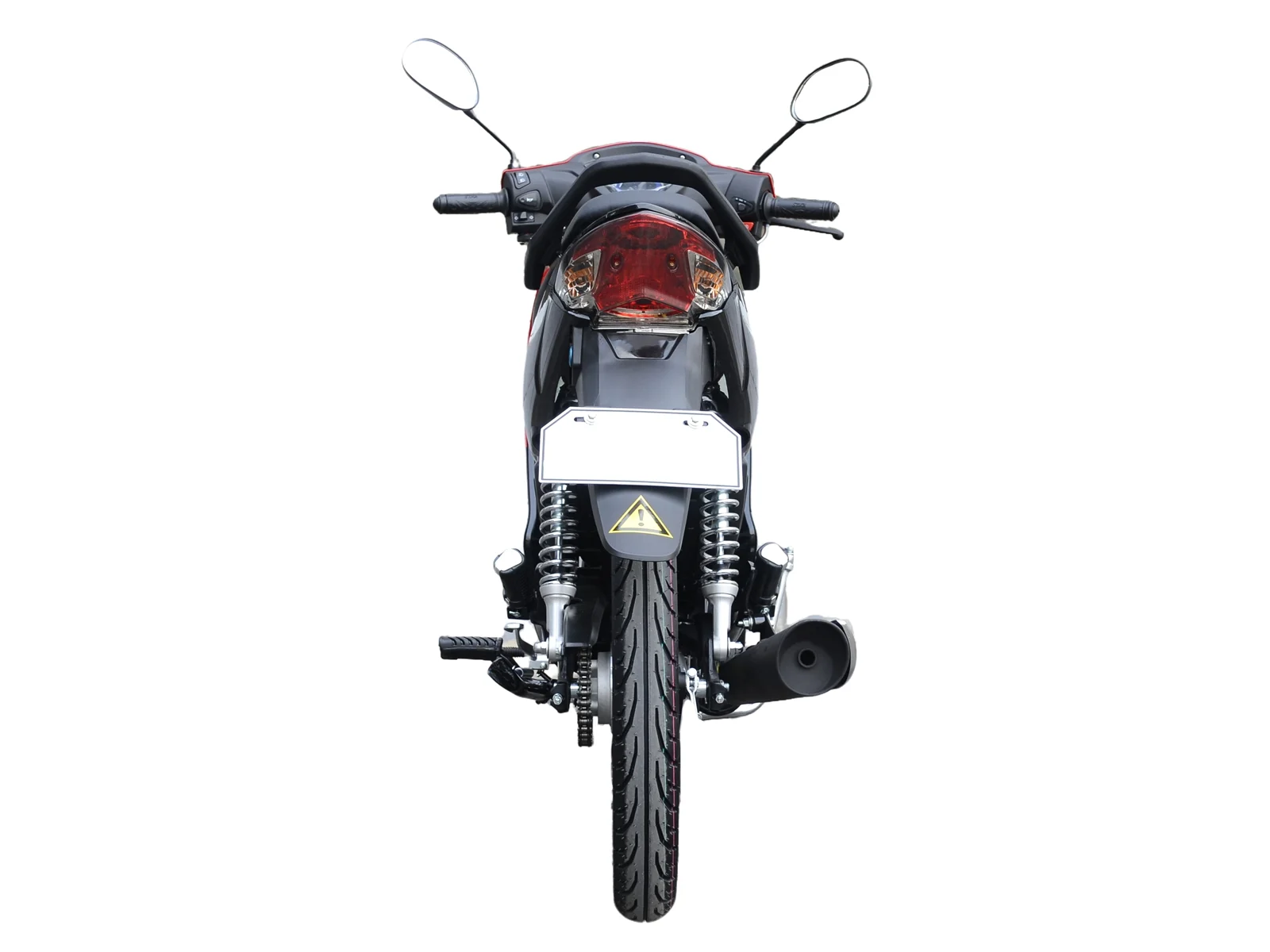

YINGANG CUB-T
CUB & Underbone — available for OEM/ODM customization and CKD/SKD/CBU supply.
CUB & Underbone
CUB-T
- OEM/ODM customization available
- CKD / SKD / CBU supply options
- Export documentation support
⚡ We reply to every inquiry within 12 hours on working days.
Model Description
The CUB-T is a fuel-efficient underbone (CUB) motorcycle designed for daily commuting and commercial use. Low fuel consumption, simple maintenance and durable components make it one of the most cost-effective two-wheelers for high-volume markets.
Like every YINGANG model, the CUB-T can be customized for your market — colors, decals, engine specs, packaging and certification requirements. CKD, SKD and CBU supply options are available.
Technical Specifications
ENGINE TYPE
110CC; AIR-COOLED, 4-STROKE
MAX POWER
5.2KW/7000±150RPM
MAX TORQUE
8.2N.M/5000±150RPM
FUEL SYSTEM
CARBURETOR
START SYSTEM
ELECTRIC/KICK
TRANSMISSION
4 GEARS
DIMENSION
1910*690*1075MM
WHEELBASE
1240MM
SEAT HEIGHT
780MM
GROUND CLEARANCE
135MM
DRY WEIGHT
95KG
MAX SPEED
80KM/H
TIRE
FR/RR: 2.50-17 / 2.75-17
SUSPENSION
FR/RR: TELESCOPIC/COIL SPRING

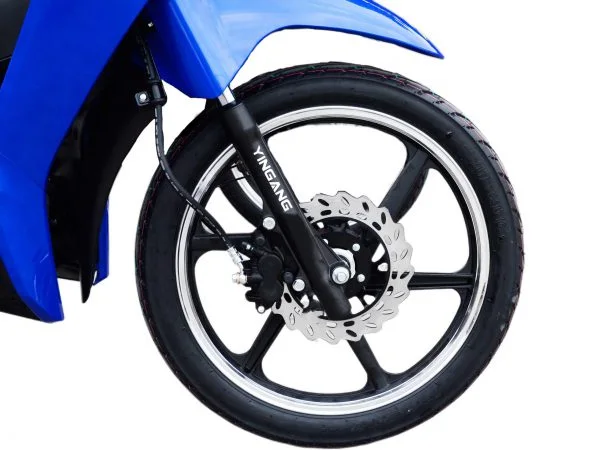

BRAKE
FR/RR: DISC/DRUM
FUEL TANK
3.5L
OPTIONS
50~130CC ENGINE/USB
LOADING
105 UNITS/40HQ IN CBU
Specifications vary by market version and customization. Contact us for the full spec sheet of the CUB-T for your target market.

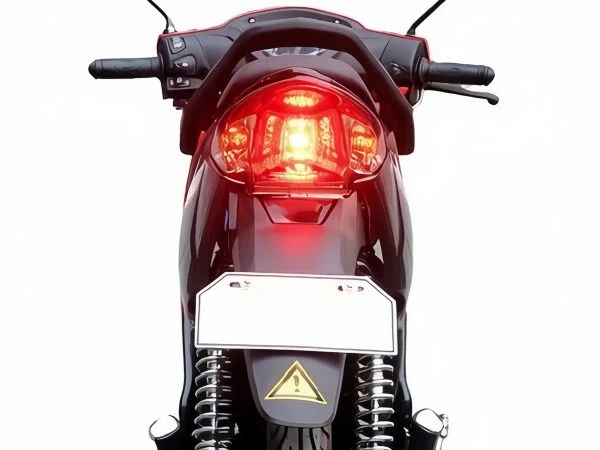

Product Details
