YINGANG CUB-E

CUB & Underbone — available for OEM/ODM customization and CKD/SKD/CBU supply.

CUB & Underbone

CUB-E

  • OEM/ODM customization available
  • CKD / SKD / CBU supply options
  • Export documentation support

⚡ We reply to every inquiry within 12 hours on working days.

Model Description

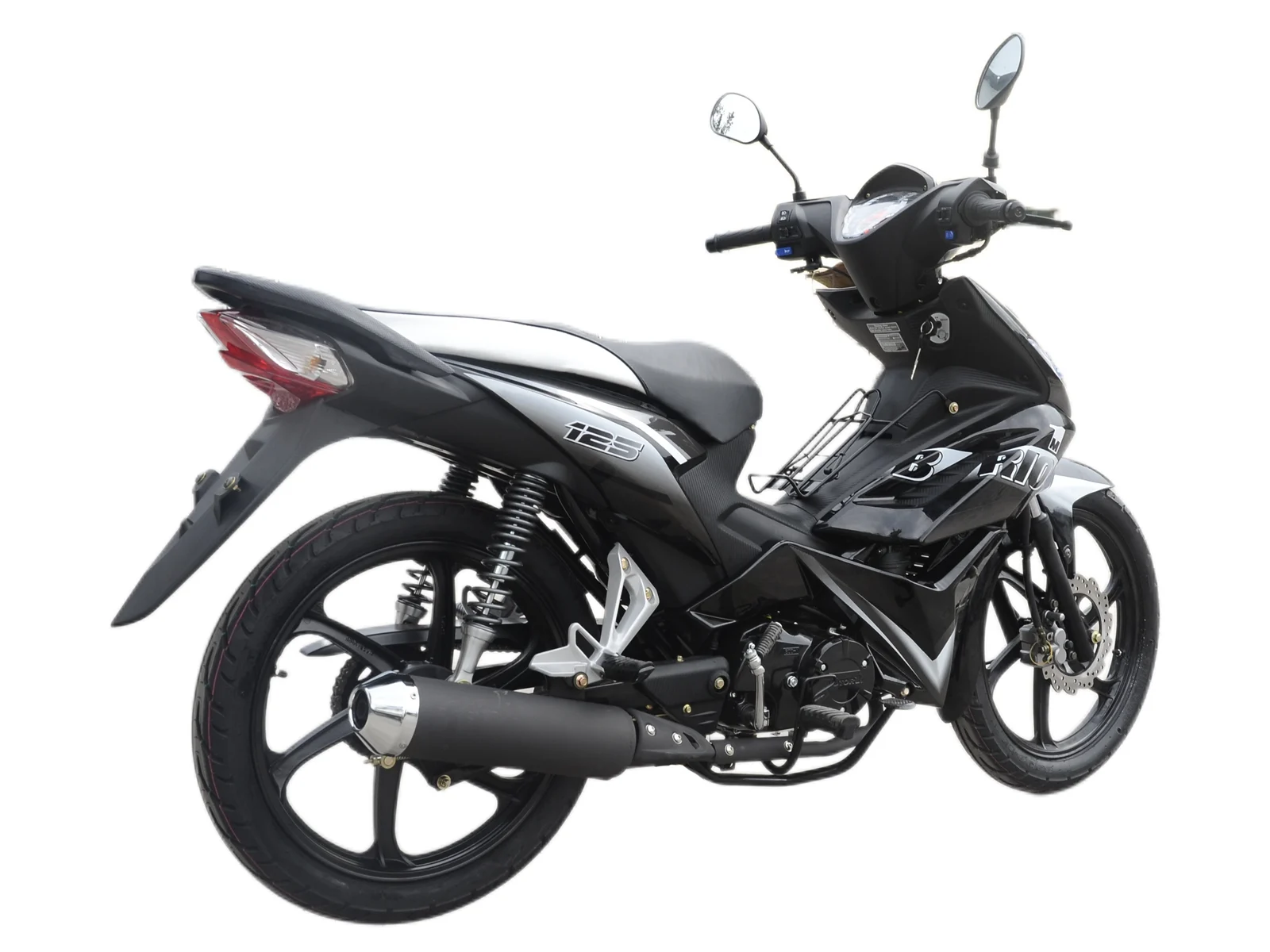

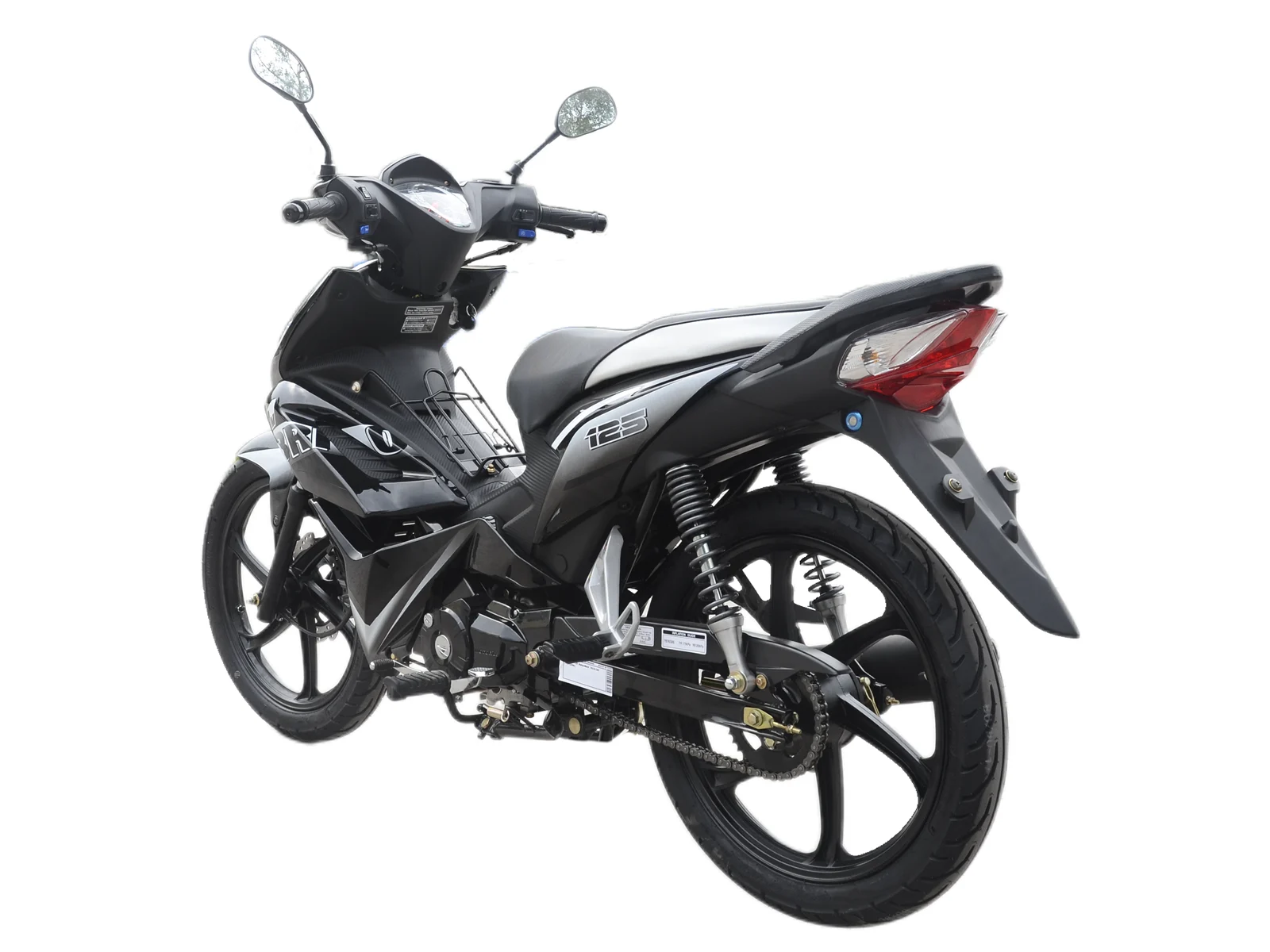

The CUB-E is a fuel-efficient underbone (CUB) motorcycle designed for daily commuting and commercial use. Low fuel consumption, simple maintenance and durable components make it one of the most cost-effective two-wheelers for high-volume markets.

Like every YINGANG model, the CUB-E can be customized for your market — colors, decals, engine specs, packaging and certification requirements. CKD, SKD and CBU supply options are available.

Technical Specifications

ENGINE TYPE120 cc; AIR-COOLED, 4-STROKE
MAX POWER5.5 kW @ 7,000 rpm
MAX TORQUE8.5 N·m @ 5,000 rpm
FUEL SYSTEMCARBURETOR
START SYSTEMELECTRIC/KICK
TRANSMISSION4 GEARS
DIMENSION1,900 × 710 × 1,085 mm
WHEELBASE1,245 mm
SEAT HEIGHT760 / 810 mm
GROUND CLEARANCE150 mm
DRY WEIGHT90 kg
MAX SPEED90 km/h
TIREFR/RR: 2.50-17 / 2.75-17
SUSPENSIONFR/RR: TELESCOPIC/COIL SPRING

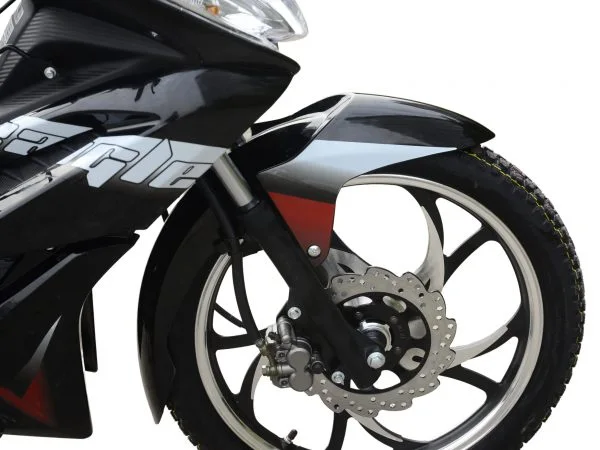

BRAKEFR/RR: DISC/DRUM
FUEL TANK3.5 L
OPTIONS50~130 cc/CENTER CARGO BRACKET/DEEP TEETH TYRE/RIM TYPES/USB
LOADING105 units / 40HQ (CBU)

Specifications vary by market version and customization. Contact us for the full spec sheet of the CUB-E for your target market.
